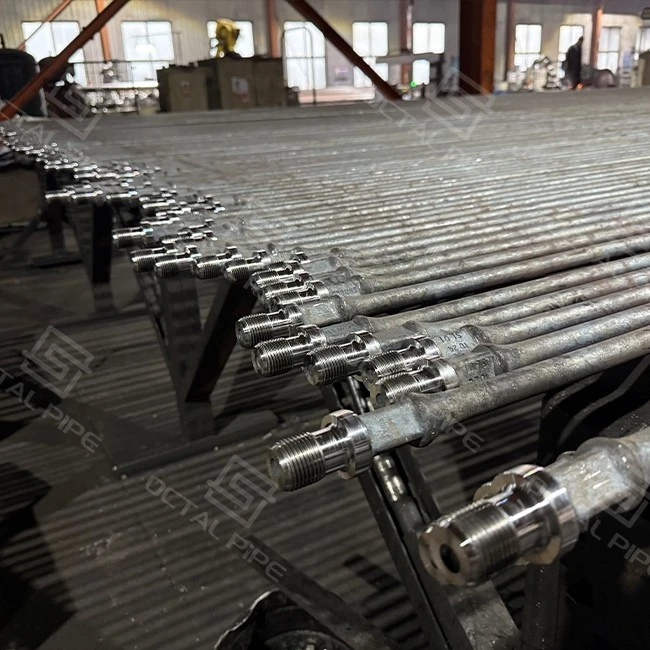

Sucker Rod

sucker tsvimbodzakakwirira-zvinhu zvine tambo dzakasimba dzinoshandiswa mudanda-kupomba (kusimudza rod) masisitimu ekufambisa mafambiro anoenderana kubva pakupomba kwepamusoro kuenda kupombi inodzika pasi. Tambo yetsvimbo yakazara inowanzo sanganisira sucker rods, pony rods, couplings, uye siker mabara, ine tsvimbo yakakwenenzverwa patsime ichipfuura nepakati pebhokisi rekuisa. Octal Pipe inopa simbi (yakasimba) yekuyamwa tsvimbo mune ese akajairwa saizi nemagiredhi, pamwe nefiberglass sucker rods yekudzikisa huremu uye kusaita ngura.

Supply scope (yakajairika):

• Kunze kwedhayamita (OD):5/8 mukati kusvika 1-3/4 mukati (yakazara siyana paAPI 11B uye Octal legacy catalog).
• Urefu: 25 ft kana 30 ft yetsvimbo dzekuyamwa; 2-10 ft pony tsvimbo.
• Mhando dzetsvimbo:matanda okuyamwa, matanda emboro, matanda akakwenenzverwa, nembariro; zvakasiyana-siyana zvakaita sedhiraivha/anti{0}}twist/centralized rods zviripo pakukumbira.

Kana matsime ako ekupomba matsime atanga kurasikirwa nenguva, chikonzero chinowanzo kuve nyore:kusarudzwa kwegiredhi zvisizvo, kubatanidza kupfeka mumatsime akatsauka, kana tambo dzakakuvara dzinotadza kugadzira-. Kutenga kunobva kwabatikana nemakakatanwa ekuongorora anouya, marekodhi akashaikwa, uye kutadza kwemunda.

Kurumidza mutengi chekutarisa (tumira neRFQ):OD & kureba akatevedzana, giredhi, coupling mhando (T kana SM; FS kana SH), tsime mamiriro (corrosion/kutsauka), anodiwa magwaro, uye chero NDT chiyero.

A sucker rod pombi setup inovimbika chete sekusarudzwa kwetambo yetsvimbo. PaPO, vatengi vanowanzokiya giredhi yetsvimbo, pin/box thread, coupling class, uye chero ngura/kupfeka dziviriro kuitira kuti tambo yetsvimbo ienderane nemutoro wepombi uye mamiriro etsime.

• Pump load profile: Match tsvimbo giredhi uye dhayamita kusvika peak mitoro uye sitiroko chirongwa.
• Corrosion nharaunda: Taura CO₂/H₂S maitiro uye fluid kucheka kusarudza nzira dzekudzivirira.
• Thread + coupling control: Tsanangura fomu reshinda uye coupling class kuderedza-nyaya dzekugadzirisa.
• Tally chirango: Kubatana-ne{1}}kumaka pamwe chete uye kurongedza runyorwa kuti kuderedze rig-saiti musanganiswa-ups.

Standard:API Spec 11B – "Sucker Rods and Rod{1}}related Products" (yazvino chiyero zvinosanganisira simbi & FRP rods, couplings, sub-macouplings, polished rods nema liner, thread geji, uye nzira dzekuyedza).

Simbi Magiredhi (API):C, K, D, KD, HL, HY - yakasarudzwa nekudzika kwetsime, mutoro, kutsauka, uye kuora. (Octal legacy catalog)

Yakajairika zvinhu (simbi tsvimbo):AISI 4130M/4138M/4142M/4330M/8630 (Octal legacy resource).

Fiberglass sucker tsvimbo (FRP):API 11B-yakavharira FRP rods yehuremu uye corrosion mabhenefiti.

Pumping System Basic Operation Flow sezviri pazasi

System Overview: Chigwere uye tsvimbo yekubatanidza inotyaira tsvimbo kuti ifambe ichikwira nekudzika mumatsime akadzika.

Operating Mechanism:

Downstroke: Inogadzira dzvinyiriro isina kunaka.

Upstroke: Inosimudza mafuta kumusoro kuburikidza nekugadzira tubing.

Hunhu hweTechnical:

Kushanda Mutoro: 15-45 kN

Tembiricha Range: -40 dhigirii kusvika 150 dhigirii

Inokodzera: Minda yemafuta akajairwa, mapuratifomu ekumahombekombe, matsime emvura akachekwa

Mabhenefiti Akakosha: Simba repamusoro, kurwisa ngura, kubatanidza chaiko

• Nominal OD:5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", kusvika 1-3/4" (project-based).
• Mafomu e thread:API sucker tsvimbo tambo dzepini/bhokisi paAPI 11B; PR (Polished Rod) pini pamatanda akakwenenzverwa paatsanangurwa; geji uye gauging maitiro paAPI 11B.
• Kururama uye kushivirira:Sezvinotsanangurwa ne API 11B (runout, kupera kugumbuka zviyero, kushivirira kweshinda).

Mumatsime akatsauka, kubatana kunowanzova chinhu chekutanga kubhadhara mutengo{0}nokuti ndiwokubata + friction + clearancehotspot. Kana sarudzo yekubatanidza isina kujeka ("standard coupling") hauone dambudziko paPO nhanho; unozviona gare gare sekukurumidza kubatanidza kupfeka, kupfekedzwa kwetubhing, maitiro anopisa tambo, uye kuita-kunonoka.

Octal zvinhuAPI 11B kubatanasechinhu chinodzorwa sisitimu (kwete chekuwedzera chinhu-pa):Kirasi T / Kirasi SM, Hukuru Hwakazara (FS) / Slim Hole (SH), nehumbowo hwekuongorora hunobatsira kuti upfuure macheki anouya uye kuderedza kushamisika kwemunda.

Sarudzo yekubatanidza (izvo zvaunotsanangura, zvaunowana)

Chii chinoita iyi "Octal" pachinzvimbo chegeneric:Hatingonyore mhando dzekubatanidza-tinokubatsira kuhodha kubatanidzwa kunoenderana nemutyairi chaiwo (kutsauka/kubvongodzwa/kubvisa), uye tinochengeta sarudzo yekubatanidza "inonzwika" nemarekodhi ekutenga anogona kufaira uye vaongorori vanogona kusaina.

Zvatinodzora kuderedza kubatanidza{0}}dambudziko rine hukama

Thread kutendeseka (kwete masirogani):shinda yakazara gaging (plug/ring) + yekuona shinda yekutarisa pa API 11B scope.

Post-kupisa{1}}kurapa kubatanidza kuoma:Kubatana kweKirasi T kazhinji kunodzorwa kutenderedzaHRA 56–62(uye yakasimbiswa sezvinodiwa).

Wear-yakatarisa maitiro eKirasi SM:yakaiswa yakaoma alloy layer ine process control yakanangana nekutsauka/abrasive service performance.

Kudzivirirwa kwetambo mukutakura:shinda dziviriro + nzvimbo-kuchengetedza, masumbu akatsiga (angle simbi/mabhaudhi) kuderedza kukuvadzwa rig risati rambobata tsvimbo.

Yakaderedzwa dambudziko mhedzisiro:vashoma vanogadzira{{0}kurambwa, kushoma kubatanidza nyaya, uye kushoma "zvaitaridza zvakanaka pakusvika asi zvakatadza kushanda" kukakavara.

Tsvimbo dzakapepereswa (Surface Rods) - Procurement Spec Table

Fiberglass (FRP) Sucker Rods - Procurement Spec Table

• Kugadzira simbi nekugadzira:Alloy simbi yakasarudzwa negiredhi → billet → kushatisa kugadzirwa kwemagumo.
• Kurapa kupisa:Normalize + hasha (kana kudzima & hasha padhizaini) kuti usvike giredhi remuchina zvivakwa uye musimboti kuoma; magumo anodzorwa{{1}kushungurudza kuomarara kudzivirira midzi yeshinda. (Ref{{3}M tsika)
• Kupedzisa:Shot-blasting/straightening, thread cutting/ rolling per API, protective coatings, thread dope & protectors.
• Kumaka & kurongeka:Giredhi, OD, kureba, kupisa nhamba, uye API monogram sezvinoshanda.

Sucker Rod End Forging



Mugumo wetsvimbo unodziiswa kusvika panosvika 1200 madhigirii mune induction heater, wozoiswa mufa uye kuumbwa pasi pekumanikidzwa kwakanyanya. Izvi zvinogadzira bendekete rakakura mudhayamita kupfuura mutumbi wetsvimbo.

Kukosha

Kugadziridzwa Kwezviyo: Forging process inovandudza kuyerera kwezvinhu uye inobvisa hurema hwemukati.

Kuwedzera Simba: Zvinowedzera kuneta simba nekuremerwa-kutakura simba.

Chinokosha Kuvimbika: Inovimbisa kuti tsvimbo inokwanisa kumira zvakadzokororwa tensile kurodha kutenderera munzvimbo dzepasi.

CNC Kutendeuka kweSucker tsvimbo



Uchishandisa Computer Numerical Control (CNC) lathe, iyo forged rod end inogadzirwa chaizvo kuti iite zvakarongwa. Izvi zvinogadzira tambo dzepamusoro-dzechokwadi dzekubatanidza (seAPI Modified Square Thread) dzine mativi chaiwo.

Kukosha

Precision Machining: Inovimbisa kuenderana kweshinda, chimiro, uye nhanho pamatanda ese.

Connection Kuvimbika: Inovimbisa yakasimba, yakachengeteka kubatanidza tsvimbo kudzivirira kutadza kutadza kwegomba.

Kubudirira Kwekugadzira: Automated process inogonesa kugadzikana, kwepamusoro-kugadzirwa kwehuwandu.

Enhanced Durability: Inogadzira yepamusoro yepamusoro kupedzisa, kuderedza kushushikana mapoinzi uye kuwedzera tsvimbo hupenyu hwekuneta.

Sucker Rod Heat Treatment



Kudziya kwakanyatsodzorwa kunoteverwa nekukurumidza kutonhodza (kudzima), zvozodziisazve-pakudzikira kwakadzikira (kudziyisa) kuti zvigadzirise zvinhu.

Kukosha

Kuchinja Kwemaitiro: Kudzima kunogadzira kuoma kwakanyanya uye simba.

Kuwedzera Kusimba: Kupisa kunoderedza brittleness, kunatsiridza kusimba kwezvinhu.

Operational Durability: Inogonesa tsvimbo kutsungirira mamirioni ekushushikana kutenderera pasi pevhu pasina deformation kana kutadza.



Mamiriro (zviri kuitika mumunda)
Tsvimbo-inosimudza tsime iri kushanda mudeviated profile. Tambo inotanga kuratidzakukurumidza kubatanidza kupfeka, intermittent torque spikes, uye "random" anoita-kunonotsa parig{1}}kazhinji kana shinda dzikabatwa zvakanaka kana sarudzo yekubatanidza isingaenderane nemamiriro ekubvumidzwa/kupfeka.

Zvinetso zvemutengi (izvo kutenga kunopomedzerwa)

• "Tatenga tsvimbo, asi ma couplings ari kupera nekukurumidza."
• "Rig nguva inoparara nekuti ma connections haaite zvakanaka."
• "Kuongorora kuri kuuya kunononoka nekuti mapepa haaratidze kutonga kweshinda kana kuoma."
• "Tinoda zvinodzokororwa zvebatch rinotevera, kwete muyedzo-uye-kukanganisa."

Octal mhinduro (zvatinoita zvakasiyana, nezvaunokwanisa kuraira zvinopesana)

• Sarudzo yakavakirwa padhuze nemutyairi anopfeka:isu tinosimbisa kutsauka kuomarara + zvipingamupinyi zvemvumo, wobva wakurudziraKirasi T vs Kirasi SM kubatanauyeFS vs SHzvichibva pane izvo chaizvo zvinokonzeresa kutadza mumatsime ako (kupfeka / kucheneswa, kwete generic "standard").
• Connection control iwe unogona kuona:tsvimbo/mabatanidza ngarava nethread vadziviriri, uye paki inosanganisirathread gaging zvinyorwa(plug/ring) kuitira kuti timu yako yekuongorora ivhare kugamuchirwa nekukurumidza.
• Hurema & humbowo hwemagetsi pazvine basa:kubatanidza uye cheki yetsvimbo inorekodhwa (kuoma + mechanical bvunzo negiredhi) kuderedza kupokana gare gare kana kupfeka kuchikurumidza.
• NDT paunozvitsanangura:kana ITP/PO yako ichida UT/MT yenzvimbo dzakatsanangurwa, tinopa iyoNDT inoshumaine scope uye inogashirwa-hapana isina kujeka "NDT iripo" mutauro.

Dambudziko rakaderedzwa (izvo zvinovandudza mushure mekusununguka)

Kukanganisa kushoma-kunopfeka-kunofambiswa nekuti kurongeka kunosanganisirakirasi yekubatanidza yekurudyi + geometrykutsauka/kucheneswa.

Zvinetso zvishoma-parutivi zvinogadzira{1}nyaya nekuti tambo dzinodzivirirwa uyegaging yakanyorwa.

Kukurumidza kupinda kuongorora nekuti iyogwaro pack rinoenderana nemacheki ekugamuchirwa chaiwo(kuteedzera, gaging, kuoma / mechaniki mhinduro, uye NDT mishumo kana yatsanangurwa).

Octal Pipe inoshanda seasucker tsvimbo mutengesikumapurojekiti ekupomba matanda uko vatengi vanoda giredhi/urefu hwakafanana, kutevedzana, uye kurongedza zvinhu kunze kwenyika kuti vagamuchire nekukurumidza-saiti kuverenga.

• Imwe PO, imwe inofananidzwa system:Simbi tsvimbo, FRP tsvimbo,Kirasi T / Kirasi SM couplings (FS/SH), tsvimbo dzakakwenenzverwa, pony rods, siker bars-kuitira kuti usadzore vatengesi vakawanda uye kubatanidza zvisingaenderane.
• Kusarudzwa kwegiredhi kunoderedza rework:TinofananidzaAPI 11B giredhi + coupling mhandokumutoro wako, kutsauka, uye madhiraivha ekuora, wobva wapfupikisa sarudzo yepfungwa kuitira kuti kubvumidzwa kwemukati kuve nyore.
• Kubvuma-rakagadzirira gwaro paki:Yese inotumirwa inotsigirwa neMTC/CMTR, dimensional & kutwasanuka marekodhi, tambo gaging humbowo, mechanika & kuoma mishumo,uyeNDT inoshuma kana yatsanangurwa-kuitira kuti ongororo irikuuya isaite kudzingirira email.
• Thread kukuvara kudzivirira chikamu cheQA:Thread dziviriro + yakagadzika bundling / yekumaka inobatsira kudzivirira "inotaridzika zvakanaka, haigadzirise" matambudziko anongoonekwa kana rig yakamirira.
• Kuendesa iwe unogona kuronga kutenderedza:Saizi dzakajairwa dzinogona kurongwa kubva kune stock; zvakakosha zvinodiwa zvinotorwa zvine nhanho yakajeka-yenguva uye hurongwa hwekurongedza (kuitira kuti zvinhu zvisave iyo yakavanzika nzira yakakosha).

Bata izvozvi

Kana uri kutsvagatsvimbo yekuyamwa inotengeswa, nzira inokurumidza yekuwana mutengo wakafanana ndeyekutumira: giredhi, dhayamita, kureba, mhando yeshinda, coupling chinodiwa, uye chero ngura kana kupfeka zvinodiwa zvekudzivirira, pamwe nekwaunoenda uye kurongedza mirairo.

FAQ



Q1: Ndinosarudza sei iyo API 11B yekuyamwisa tsvimbo giredhi (C, D, K/KD, HL/HY)?

A: Sarudza zvichibva pane chaiyo yekutadza mutyairi:mutoro/kuneta, ngura (H₂S/CO₂/chlorides),uyekutsauka kupfeka. Kana corrosion iri mutyairi, simba repamusoro rega harigadzirise-giredhi uye sarudzo yekubatanidza inofanira kuenderana nenharaunda.

Q2:Ndeapi saizi uye kureba zvinonyanya kuwanda kune API 11B sucker tsvimbo?

A:Mirairo yakawanda inotarisisa5/8" kusvika 1-1/8"mu25 ft kana 30 ftseries, pluspony tsvimbokuitira nzvimbo. Kuenzanisa saizi imwe/urefu hwakatevedzana kunorerutsa masitokisi uye kunoderedza misanganiswa yesaiti-ups.

Q3: Ndeapi magwaro anofanirwa kuuya neAPI 11B sucker rods uye couplings?

A:Pashoma:Material traceability (MTC/CMTR), tambo gaging marekodhi, dimensional/kururama cheki, mechaniki bvunzo mhinduro, uye kuoma mishumo.. WedzeraUT/MT inoshumachete kana PO/ITP yako ichida NDT.

Certifications



CE Certificate

ISO 9001 Chitupa

API Q1 Chitupa

ABS Chitupa

AP-5L Chitupa

API-5CT Chitupa



OD:5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", kusvika 1-3/4"

Urefu:25 ft / 30 ft tsvimbo; 2-10 ft pony tsvimbo

Magiredhi:C, K, D, KD, HL, HY

Zvekushandisa: 4130M, 4138M, 4142M, 4330M, 8630

Couplings:Kirasi T (FS/SH), Kirasi SM (FS/SH), madiki-mabatanidzwa

ZvishandisoTsvimbo dzakapepereswa, mbariro dzekunyura, centralizers, tsvimbo yetambo hardware (Per Octal legacy catalogs uye API 11B)
