Chigadzirwa Nhanganyaya

CWC Anode yekuisa zvinoreva

Anode installationndizvo basa rekunamidzira zvekupira anode papombi{{0}nekuwelding, kusungirira/kusunga, kana kuaisa muchikamu cheCWC-kuti maanodhi atange aora uye pombi yesimbi irambe yakachengetedzwa sechikamu checathodic protection (CP). Kune CWC yakavharwa pombi, inosanganisirawo kutongaanode chinzvimbo, kugadzirisa nzira, uye tambo yekudzivirirasaka anodhi anoramba achishanda nemagetsi pasina kukuvadzwa panguva yekubata, kuisa, kana welding mumunda.
Maitiro maviri makuru anoshandiswa:

Kupira anode (Zn, Al, Mg):Zviri nyore, kugadzirisa{0}mahara, kwakanakira mvura isina kudzika nevhu.
Impressed Current Anodes (MMO, Si{0}}iron):Powered by rectifiers, inogadzirika, inokodzera kudzika kwemvura uye kureba-mapaipi ekureba.

Octal Pipe inogadzira uye inoisa anode masisitimu zvinoenderana neDNVGL-RP-F103, ISO 15589-2, uye NACE mwero, ichipa optimized spacing, bonding, uye yekuisa nzira (welded, clamped, kana CWC yakamisikidzwa).

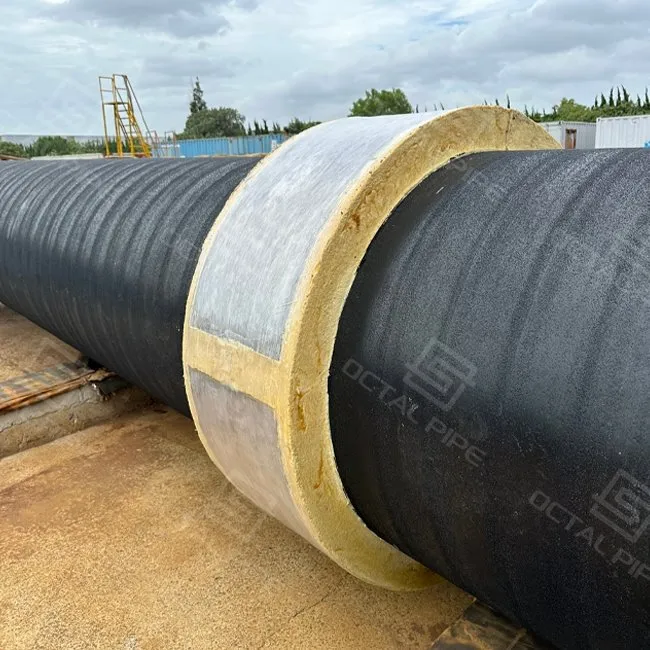

anodes embedded in CWC concrete weight coated pipeline installation detail ICCP impressed current cathodic protection anode system installation on pipeline

Anode Installation Standards & Anode Type Selection (CP Compliance)

Anode yekuisa chinhu	Zvarinofukidza	Yakajairika sarudzo / chinyorwa	Reference mwero & madhairekitori
Anode kuiswa kutevedza	CP system dhizaini hwaro hwemapaipi akanyura / epasi pevhu; kugamuchirwa chimiro chekuisa uye kutumwa	Inoshandiswa kuenzanisa dhizaini yeanode, nzira yekubatanidza, uye magwaro ekuchinja kwemahombekombe / pasi pegungwa / mitsara yakavigwa.	DNVGL-RP-F103(submarine CP ne galvanic anodes);DNV{{0}RP-B401(subsea CP tsika);ISO 15589-2(CP ye petroleum & yegasi pombi pombi masisitimu);NACE SP0169 / SP0177(kunze kwekuora kwekudzivirira kwepasi pevhu / pasi pepombi)
Anode yekuisa mhando: Chibayiro (galvanic)	Hapana simba rekunze; anode zvinhu corrodes kudzivirira pombi	Zinc / aluminium / magnesiumalloys; zvakajairika kumvura isina kudzika, machakwi, uye mamiriro evhu apo nyore, kuchengetedzwa kwakagoverwa kunodiwa	Inowanzo shandiswa pasi peiyo CP dhizaini nheyo pamusoro (purojekiti yakatarwa inosarudza zvinhu uye nzvimbo)
Anode yekuisa mhando: ICCP	Powered CP ine inogadziriswa inobuda kuburikidza neinogadzirisa	MMO / graphite / silicon-simbianodes; anowanzo shandiswa pakadzika pemvura yakadzika kana{0}}mapaipi akareba uko kudiwa nekudzora kuri pamusoro	Inowanzo shandiswa pasi peiyo CP dhizaini yepamusoro (purojekiti inotsanangura simba / kutonga uye yekutarisa zvinodiwa)

cWC Pipe Kuisa Nzira

Anode Installation octal

Zvichienderana neDNVGL-RP-F103, kuiswa zvakanaka kwemaanode kwakakosha pakuona kugovaniswa kwakafanana uye-nguva refu inoshanda. Octal Pipe inopa akawanda ekuisa mhinduro zvichienderana nepombi dhizaini uye nharaunda:

1. Welded attachment (pads / bracelets)

Kudzora nzvimbo:Anode akamisikidzwa kudzivirira majoini emumunda, zvitsigiro, uye nzvimbo dzinopokana neanoruma, rollers, kana tensioner kubata.

Weld + coating kugadzirisa kurangwa:Nzvimbo dzeWeld dzinotsanangurwa, ipapo kuvhara kunogadziriswa uye kuvharwa kudzivirira "kupisa kuduku, masero makuru ekuora."

Cable protection:Routing inochengetedzwa uye inodzivirirwa kuti irege kudonhedza panguva yekubata nekudzikisira.

2. Kuisa simbi/tambo (anode installation kit)

Kit scope kujeka:Yemazuva ese yekuisa anode kit inosanganisira clamp/saddle body, tambo/fasteners, insulation pads, continuity cable, uye sealing materials-kuitira kuti kondirakiti asavandudze panzvimbo.

Contact quality:Mafit surface anodzorwa kuti-arambe aripamusoro anodarika nekuona asi achizotadza magetsi gare gare.

Anti-kusunungura uye kubata kutakura:Strapping inotsanangurwa saka inopona kutakura marori, kusimudza, uye kuisa tension pasina kuchinja.

3. Yakaiswa muCWC (yekuchengetedzwa kweCP pane kongiri yakavharwa pombi)

Embed geometry:Recess/cover inodzorwa saka anode inodzivirirwa kubva pakukanganisa uye kudhonza ichiri kushanda nemagetsi.

Cable inobuda nekuvharwa:Cable yekubuda mapoinzi inodzivirirwa uye yakavharwa kuti isaite snag point kana nzira dzemvura.

Pedzisa shanduko:Iyo CWC/anode zone inorongedzerwa newelding cutbacks saka munda wekubatanidza coating inogona kuurayiwa zvakachena (kana yatsanangurwa).

Kuisa pasi pemvura:

Pamapaipi epasi pemvura, anode anoiswa kumahombekombe nevanosiyana kana mota dzinoshandiswa kure (ROVs).

Specialized clamps uye welding masisitimu anoshandiswa kuvimbisa kuiswa kwakachengeteka uye chaiko.

DNVGL-RP-F103 inotsanangura nzvimbo uye nzira dzekubatanidza kuti ive nechokwadi chekuvharirwa kweCP.

Powered Anode Rod Installation (ICCP):

Anode rods (MMO, titanium{{0}based) anoiswa munzira yepombi.

Yakabatanidzwa netransformer-zvigadziriso zvepamahombekombe kana pamusoro pepuratifomu.

Inopa inogadziriswa ikozvino, inokodzera mapaipi emvura yakadzika ane yakakwira CP kudiwa.

nzira yekuisa anode

Shandisa izvi sengenzira yekuisa anodeyekutanga uye simbisa muITP yako painoda:

Pre{0}}simbiso yebasa:Tevera coating system, CWC kuvaka-up (kana zvichiita), anode spacing plan, uye "hapana{-enda" mazoni ari pedyo nemajoini/zvitsigiro.

Kumaka & kukwana-pamusoro:Maka nzvimbo pakudhirowa; chengetedza mvumo yekuisa midziyo nenzvimbo dzekubata.
Kunamatira:Isa ne welded kana clamp / tambo nzira; kuchengetedza cable routing uye kusununguka kwekutambudzika.
Kuenderera mberi kwekutarisa:Ita kuenderera kwemagetsi / kuramba macheki uye rekodha mhindurokana yatsanangurwa muPO/ITP.
Chisimbiso & kugadzirisa:Gadzirisa/cheka kukuvadzwa kwejachi, tambo dzekubuda nadzo, uye{0}tarisazve nzvimbo dzakagadziriswakana zvatsanangurwa.
Se{{0}zvinyorwa zvakavakwa:Gadziridza anode ID / nzvimbo uye bvunzo marekodhi ekumisheni uye remangwana CP yekutarisa.

Technical Advantages

Anode Installation octal pipe

Octal Pipe's anode yekumisikidza mhinduro inoburitsa yakasimba corrosion control ine akawanda ehunyanzvi mabhenefiti:

Hupenyu Hwebasa Hwakawedzerwa:

DNVGL-RP-F103 dhizaini inovimbisa huremu hweanode, nzvimbo, uye kugona, zvichiita makore 20–40 ekudzivirira kunoshanda kwecathodic.

Optimized Current Distribution:

Injiniya dhizaini inovimbisa yunifomu polarization yenzvimbo yepombi.

Inodzivirira kuchengetedzwa kwenzvimbo kana kuwedzeredza, izvo zvese zvinogona kukonzeresa kuvharwa kwebhandi.

Kuchengeteka munzvimbo dzine njodzi:

Zvibairo masisitimu hazvidi simba, zvichibvisa njodzi munzvimbo dzinopisa.

ICCP masisitimu akagadzirwa nekutarisa otomatiki uye kutonga kwazvino kuti ive nechokwadi chekushanda kwakachengeteka.

Kubatanidzwa neCoatings & CWC:

Inoshanda tandem neFBE, 3LPE, 3LPP, uye CWC coatings, ichipa zvese ngura uye buoyancy kugadzikana.

Inosimbisa kutendeseka kwekuvhara apo ichiwedzera CP ne redundancy.

Kuchinja:

Sacrificial CP – Yakareruka, -kuchengetedza yakaderera, yakanakira nzvimbo dzisina kudzika/dzakanyura.

ICCP – Inochinjika, yakakodzera mvura yakadzika uye yakareba-mapaipi ekutumira kunze.

Proven Offshore Performance:

Inoshandiswa mumapaipi epasi pemvura, zvikwiriso, uye J-machubhu, zvichisangana neDNV offshore design security margins.

Kuiswa kweAnode paCWC Yakaputirwa Pipe (Kuchenesa, Kukuvadza, uye Kudzivirirwa Kwetambo)

On aCWC yakavharwa pombi mutsetse, anodekuiswahaisi chete nezve CP ikozvino kubuda. Iyo njodzi inoshanda ndeyekuti anode uye tambo dzinovasnag/impact pointspanguva yekudhonzwa-mukati, kusimudza yard, roller contact, and lay operations-ipapo purojekiti inobhadhara kugadziridza ne{2}}macheki. Ichi chikamu chinotarisa kuisirwa anode papombi nenzira inoramba iine magetsi inoshanda uye ichivakwa kuburikidza neCWC kubata uye kupinza munda.

Dambudziko remumunda rinoonekwa pamitsara yeCWC	Anode yekuisa kutonga inoshandiswa paCWC yakavharwa pombi	Izvo mutengi anogona kukumbira / faira (kana yatsanangurwa)
Anode body inorova rollers/stingers kana kuita snag point panguva yekudhonza-in / lay	Tsanangura "hapana-nzvimbo dzekusangana" uye zvinodikanwa kubvumidzwa kune tensioners/rollers; sarudza yekunamatira nzira (welded / clamp / embedded) zvichienderana nekubata nzira	Kudhirowa kwechimiro pasina{0}zoni dzekuenda; attachment method statement; se-akavaka nzvimbo yeanode list
Kukuvadzwa kwetambo kubva pakukweva, kusimudza zvipfuramabwe, kana pombi-ku{1}}kusangana kwepombi mukuturikidzana	Cable routing nekurerutsira kunetseka, kumhanya kwakachengetedzwa, uye yakavharwa yekubuda; dzivisa zvishwe zvakasununguka zvakafumurwa	Cable routing tsananguro + yekuisa chisimbiso nzira; chinyorwa chekutarisa; gadzirisa/re{1}}yedza log (kana iripo)
Concrete edge spalling yakatenderedza nzvimbo yekunamatira mushure mekufambisa	Dzora nzvimbo dzekubata, dzivisa kurodha zvigaro zveanode pamipendero isina kusimba; tsanangura mapoinzi ekubata / kurongedza mitemo kuitira kuti anode nzvimbo dzirege kuita	Kubata / kurongedza manotsi; Yadhi mifananidzo pakukumbira; kukuvara kwekugamuchira maitiro kana zvataurwa muPO/ITP
Kukuvadzwa kwekuvhara pamapedhi akaiswa / mabhatani ekusangana anogadzira masero ekuora emunharaunda	Tsanangura pamusoro pekugadzirira uye kuvhara matanho ekugadzirisa akatenderedza nzvimbo dzekunamatira; simbisa nzvimbo dzakagadziriswa (kana zvichidikanwa)	Coating kugadzirisa rekodhi; bvunzo yezororo/re{0}tarisa rekodhi (kana zvatsanangurwa)
Kumiswa kwemagetsi kwakawanikwa kunonoka (mushure mekurara kana kusati kwatumwa)	Inoda kuenderera / kuramba cheki pamatanho akabvumiranwa uye kutora mhinduro	Kuenderera / kuramba bvunzo rekodhi: nzira + yekugamuchira hwaro + mhedzisiro (kana yatsanangurwa)

Anode Spacing & Layout Mitemo (Dzivisa Munda Joint Conflicts)

Mazhinji anode yekumisikidza rework inoitika nekuti mitemo yepakati yakanyorwa se "X metres zvakajairwa" pasina kufungamajoini emunda, CWC cutbacks, uye kuisa michina yekubata. Mitemo iri pazasi inobatsira kuchengetedza dhizaini ichivakwa paCWC yakavharwa pombi uchichengetedza iyo CP dhizaini chinangwa.

Layout mutemo	Nei zvakakosha paCWC yakavharwa pombi	Maitiro ekuzvitaura paPO / mifananidzo
Chengetedza anode kunze kwemunda wekubatanidza coating zones	Majoini emumunda anoda kuwana kwakachena kwewelding, NDT, uye munda wakabatana coating; anode ari padyo anogadzira kubvumidzwa uye kupotera kunetsana	Hapana anodhi mukati me - mm/m yemunda wakabatanidzwa / girth weld zones (chinhambwe pakugadzirwa kweprojekti)
Chengetedza anodhi kure nekongiri{{0}yemahara magumo / magumo ekuchinja	CWC inoguma ndiyo yakanyanya kubata uye kugadzirisa nzvimbo; kusaisa kwakashata kunowedzera spalling uye kunonotsa kukwana{{0}kukwira	Hapana anode inonamirwa mukuchinja kweCWC uye kongiri{{0}yemahara kureba kwekupedzisira (nyika yekucheka kureba pane yakatarwa)
Tsanangura nzvimbo dzekusangana dzinoita roller/tensioner se "hapana{-enda"	Rollers/stinger inogona kupwanya tambo kana kubata anode body panguva yekudhonza-in/lay	Hapana anode mumidziyo yekubata mabhendi (inozivikanwa nenzira yekuisa)
Dzivisa zvitsigiro, mabhende, uye{0}}pamusoro pekubata kushushikana	Masimbi, zvipfuramabwe, uye zvitsigiro zvinowanzomhara padyo nemabhenji / nzvimbo dzekutsigira; anode aripo anotanga arohwa	Hapana anode kuisirwa pazvitsigiro/mabhendi/kubata mapoinzi ekusimudza (pakudhirowa)
Bata nzvimbo se "design chinangwa + constructability cheki"	CP nzvimbo inofanirwa kugutsa dhizaini, asi kuiswa kwekupedzisira kunofanirwa kupona kuvaka	Spacing per CP dhizaini; dhizaini yekupedzisira kuti isimbiswe inopesana nemepu yekubatana yemunda uye chirongwa chekubata usati wavhara / kutumira

Bata izvozvi

FAQ

Q 1 - Unodzivirira sei nyaya dzemagetsi kana anodhi akaiswa pamapombi akavharidzirwa nekongiri?

A:Nekudakongiri uremu coated pombi, chirongwa chekuisa chinofanira kusanganisira zvigadziro zvekudziviriramagetsi kusangana pakati anodes uye kongiri kusimbisa, uye izvi zvinofanirwa kutariswa muIPS/ITP. (DNV nhungamiro inonongedza kudiwa kwepombi dzakavharwa nekongiri uye inoisungirira kumaitiro / kuronga kwekuongorora.)

Q 2 - Nzira yekuisa anode inofanira kusanganisira chii?

A: zvakakodzeranzira yekuisa anodeinowanzo nyorwa seIPS/ITP-yakagadzirira kutevedzana yebasa inovhara risiti/kubata/kuchengetera anode, ine udzame kudhirowa kwekuisa (nekushivirira), kuongorora/kuyedzwa kwekutsanya, uye zvinyorwa zvemarekodhi. Iyi "maitiro ekufungidzira" nzira inoshevedzwa zvakajeka muDNV nhungamiro yemapombi epasi pemvura.

Q 3 - Ndeapi magwaro anofanirwa kuuya nekuisa anode (yekugamuchira uye yekuchinja)?

Kana yatsanangurwa muPO/ITP, zvinhu zvakajairika zvekuchinja zvinosanganisira:se-akavaka anode location list/IDs, kuisirwa / kutsanya yekuongorora cheki, uye chero chinodiwakuenderera / kuramba bvunzo rekodhipamwe nekugadzirisa coating/re-test logs kana gadziriso yaitwa. Nhungamiro yemazinga inosimbisa kuchengetedza kudhirowa kwekuiswa, kuongorora / kuyedzwa, uye marekodhi sechikamu cheiyo yakanyorwa package.
